What the Human Eye Misses: Objective Gait Analysis and Subtle Lameness in the Horse
- 3 days ago
- 4 min read
Subtle asymmetry or lameness in the horse is rarely random. It is often the earliest indicator of musculoskeletal strain, long before obvious head nodding or a clear hip hike develops.
In many performance horses, the first signs of dysfunction present as a loss of impulsion, reduced engagement, resistance in transitions or an overall sense that the horse feels different under saddle. These changes can be difficult to quantify visually, even for experienced clinicians.
Objective gait analysis was has evolved to enhance our ability to diganose with greater precision, enhancing our ability to diagnose and effecitvely manage lameness in the horse.
What Is Objective Gait Analysis?
Objective gait analysis uses technology to quantify movement symmetry during locomotion, most commonly during trot as it is a symmetrical gait. Rather than relying solely on visual assessment, these systems measure vertical movement of the head and pelvis, stride-to-stride consistency and timing patterns.
It is important to distinguish between measurement and diagnosis. Objective systems measure asymmetry, while lameness is a clinical diagnosis. Asymmetric movement may reflect pain, mechanical restriction, neurological dysfunction or physiological laterality. Determining the c`se requires a systematic clinical evaluation.
Systems Used in Clinical Practice
Several technologies are used in equine gait analysis. While the hardware differs, the underlying goal principles remain the same, with validated systems presenting very similar results to each other.
Optical Motion Capture – The Gold Standard
Optical Motion Capture (OMC) uses multiple high-speed cameras and reflective markers placed on anatomical landmarks to create detailed three-dimensional models of movement.
Because of its precision and comprehensive data capture, OMC is considered the benchmark system in gait analysis research. It allows analysis of joint angles, stride length, timing and full-body motion across multiple gaits.
However, OMC requires specialised facilities and fixed infrastructure, limiting its use in ambulatory practice.
Inertial Motion Unit Systems – Portable Field-Based Measurement

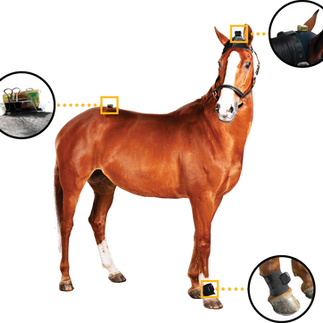

Inertial Motion Unit systems use small wireless sensors positioned on the poll, pelvis and sometimes a limb. These sensors record acceleration and vertical displacement many times faster than the human eye can process.
Validated IMU systems are benchmarked against Optical Motion Capture data, ensuring that their measurements align closely with gold standard research systems.
Their portability allows objective measurement in real-world clinical settings. They are particularly useful for:
Detecting low-grade or multi-limb asymmetry
Objectively assessing response to diagnostic nerve blocks
Monitoring rehabilitation progress
Tracking changes over time
These validated systems include: Equinsosis, Equigait and Equi-Pro
Artificial Intelligence-Based Gait Analysis
More recent advances incorporate artificial intelligence into gait analysis. At Core Equine, we use the only validated AI system SLEIP, which is integrated into our lameness investigations and performance monitoring.
AI-based systems analyse high-speed video footage using computer vision and machine learning algorithms trained on large datasets. Rather than attaching sensors, AI technology quantifies movement asymmetry directly from video. This provides a practical, sensitive and consistent approach to objective assessment. AI systems are particularly useful for remote use and patient monitoring.
The Critical Role of Interpretation
Regardless of the system used, objective gait analysis measures asymmetry. It does not identify a specific structure, nor does it confirm that asymmetry is pain-related. As such, clinical interpretation remains essential.
Objective data is most powerful when integrated into a comprehensive lameness investigation, including:
Dynamic assessment on straight lines and circles
Flexion testing
Diagnostic nerve blocks
Targeted imaging such as ultrasound or radiography
When used in this structured manner, objective gait analysis improves localisation, reduces bias and supports more precise decision-making.
Laterality Versus Lameness
Horses naturally exhibit sidedness, much like right- or left-handedness in humans. Mild asymmetry may therefore be physiological.
However, pain-related asymmetry often:
Changes with surface or speed
Responds to diagnostic analgesia
Progresses over time
Correlates with performance limitation
Establishing a baseline movement profile is particularly valuable in performance horses. Repeated objective assessment over time allows differentiation between consistent physiological asymmetry and evolving pathology.
When Should You Consider Assessment?
Low-grade or multi-limb lameness is one of the more challenging aspects of equine orthopaedic practice. The human eye has inherent limitations when detecting small differences in symmetry, particularly when asymmetry is subtle or compensation is present.
Objective measurement does not replace clinical expertise. It strengthens it. As such, earlier detection of asymmetry allows earlier intervention, structured rehabilitation and informed workload management. For sport horses, this can be the difference between short-term management and long-term performance sustainability.
You do not need obvious lameness to warrant investigation.
Assessment is appropriate when a horse shows:
Persistent performance plateau
Subtle loss of engagement
Resistance in transitions
Reduced impulsion
Recurrent asymmetry
If a horse feels different, even subtly, it is worth evaluating systematically rather than training around the issue.
Integrating Objective Gait Analysis at Core Equine
Objective gait analysis, including AI-driven systems, is integrated into structured lameness investigations at Core Equine. We use SLEIP to enhance measurement, reduce bias and support clinical reasoning. Once the source of the lameness is identified we can make informed treatment and rehabilitation plans to optimise the wellbeing and performance of your horse.
Core Equine provides structured lameness investigations and objective gait analysis services across Melbourne and surrounding regions.
Book an Assessment
Make informed pre-purchase decisions with objective gait analysis
Frequently Asked Questions
What is objective gait analysis in horses?
Objective gait analysis uses technology to measure movement symmetry during locomotion. It quantifies vertical head and pelvic movement to detect asymmetry more precisely than visual assessment alone.
Can objective gait analysis detect subtle lameness?
Yes. Objective systems can detect low-grade asymmetry that may be difficult to see visually. However, asymmetry must still be interpreted within a full clinical examination to determine whether it reflects pain.
Does asymmetry mean my horse is lame?
Not necessarily. Asymmetry is a measurement. Lameness is a clinical diagnosis. Asymmetry may be due to pain, mechanical restriction, neurological dysfunction or natural laterality.
How does AI improve lameness assessment?
AI-based systems analyse high-speed video using machine learning algorithms trained against gold standard Optical Motion Capture data. They improve sensitivity and consistency in detecting subtle asymmetry.
